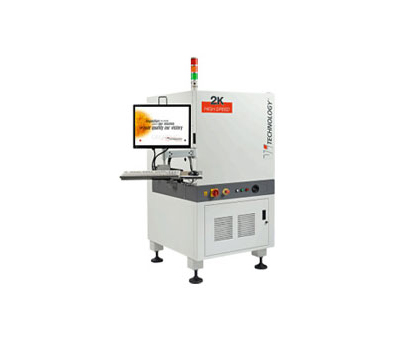

產品型號：法國進口VI系列AOI-2K在線AOI光學檢測儀

品牌：Vi

產地：法國

法國進口VI系列AOI-2K在線光學檢測儀 2K- 5K中文技術參數：


軌道系統                                        單軌                       單軌

基板更大尺寸                 335.6x335.6              533.4x533.4
 PCB厚度                            0.5-4                         0.5-4
 最小檢測尺寸                    50×50                         50x50
 PCB llf(kg) 3 3
 XY驅動系統                            線性馬達和光柵尺/線性馬達和光柵尺

框架材質                                              鑄鐵結構/鑄鐵結構

相機分辨率

Plus                                   1.620x1,220                             1620x1,220
 Perform                            2.352x1,728                             2,352x1,728
 Premium                           2,352×1728                             2,352x1,728


像素大小(子像素技術）

Plus(um)                                    8-12                                   8-12
Perform(um                                 8                                         8


Premium(um)                              8                                         8


相機FOV

Plus(mm)                                  42.1x31.7                       42.1x31.7
Perform(mm)                            61.1x44.9                       61.1x44.9

Premium(mm)                          61.1x44,9                       61,1x44.9


錫膏檢測平均速度

Plus                                           55,000                            55,000
Perform 58,000 58,000
Premium                                   75,000                            75,000
